- Overview
-
The HST series hydraulic cone crusher has the advantages of high crushing efficiency, low invest cost, easy maintenance and operation and good shape final product. Compared with equivalent-sized crushers, The HST series hydraulic cone crusher has a larger output capacity, this series crusher is effective and environmentally friendly.
- Processed Materials
-
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc..
- Applications
-
Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

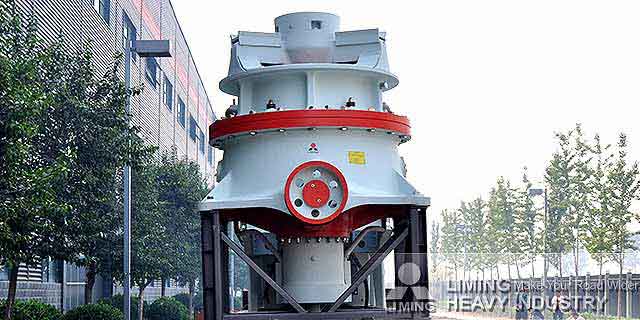

- Picture Shows
-
- Working Principle
-
The HST series hydraulic cone crusher is mainly composed of six parts: upper frame body, low frame body, movable cone, eccentric sleeve, transmission part and hydraulic cylinder.The electromotor leads the eccentric sleeve to rotate by the V-belt, drive shaft and drive gear. The movable cone does rotary and pendulum movement under the leading role of eccentric sleeve which makes the movable cone and fixed cone close and far away from time to time. The raw material is crushed in the crusher chamber by squeezing and striking continuously. The crushed stone discharges from the bottom.
- Specifications
-
Model Cavities Maximum feeding size (mm) Minimum discharging size (mm) Maximum install power (kW) HST100 S1 Extra Coarse 240 22 90 S2 Medium Coarse 200 19 H1 Fine 135 10 H2 Medium Fine 65 8 H3 Extra Fine 38 4 HST160 S1 Extra Coarse 360 25 160 S2 Medium Coarse 300 22 S3 Coarse 235 19 H1 Fine 185 13 H2 Medium Fine 90 10 H3 Extra Fine 50 6 HST250 S1 Extra Coarse 450 35 250 S2 Medium Coarse 400 29 S3 Coarse 300 25 H1 Fine 215 16 H2 Medium Fine 110 13 H3 Extra Fine 70 8 HST315 S1 Extra Coarse 560 41 315 S2 Medium Coarse 500 38 H1 Fine 275 16 H2 Medium Fine 135 16 H3 Extra Fine 65 13
