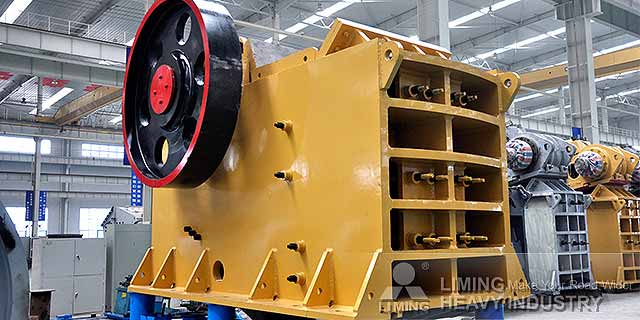

PE Series Jaw Crusher is mainly used for crushing various ores and large materials with compression strength not more than 320Mpa into medium-sized grains. Jaw crushers of our PE series are used as primary crusher and secondary crusher since they can achieve coarse crushing and fine crushing. It can process large stones with large capacity primarily and thus become the first choice for primary crushing. We have produced PE series jaw crusher based on many years of research and integrated with successful experience of the similar production at home and aboard.

Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc..

Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

The motor drives pulley and makes the movable jaw doing periodic movement through eccentric shaft. The angle between toggle plate and movable jaw increases when the movable jaw moves up. Then the movable jaw is close to the fixed jaw. The stone is crushed in this process. The angle of jaw crusher between toggle plate and the movable jaw decreases when the movable jaw moves down, the movable jaw of jaw crusher moves away from fixed jaw by the pulling of rod and spring, the materials that meeting requirement is discharged from the outlet of jaw crusher.
