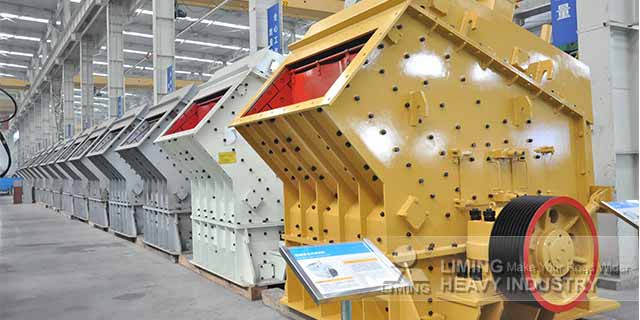

PF Series Impact crusher is the latest product researched by our company by absorbing advanced technology at home and aboard and combining specific industry and mining condition in sand and stone industry. The discharging size of our PF series impact crusher is adjustable and the crushing specification is diversified. Users can adjust the gap between hammer head and impact plate and matching parts as needed to get perfect outputting size.

Stone with compression strength lower than 350Mpa, such as limestone, gypsum, concrete, etc..

Ore crushing, railway, highway, energy, cement, chemical industry, construction, etc.

Impact crusher crushes material by striking energy. When it works, the motor drives the rotor rotates at a high speed, on which the blow bar is installed. As soon as the material get into the affecting area of the blow bar, they will be stroke by the blow bar and be thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact racks and the rotor can be adjusted to change the size and shape of the end products.
