- Overview
-
Spring Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. The spring cone crusher acts as an overloading protection system that allows metal to pass through the crushing chamber so as not to damage the cone crusher. The type of crushing chamber depends upon size of feeding and fineness of crushed product. The standard type (PYB) is applied to medium crushing, the medium type (PYZ) is applied to medium or fine crushing and the short head type (PYD) is applied to fine crushing.
- Processed Materials
-
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, mine ore, quartz, diabase, etc. (for hard stone).
- Applications
-
Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.

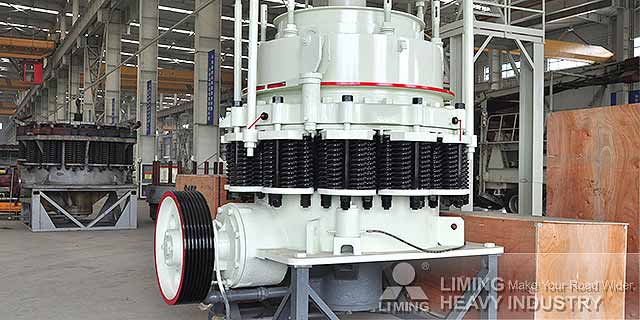

- Picture Shows
-
- Working Principle
-
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficiency efficient than jaw crusher. The movable cone is supported by spherical bearing and fixed on a hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing.
- Specifications
-
Type Max. input (mm) Adjusting range of output (mm) Capacity (t/h) PYB 2200 300 30-60 590-1000 PYZ 230 10-30 200-580 PYD 100 5-15 120-340 PYB 1750 215 25-60 280-480 PYZ 185 10-30 115-320 PYD 85 5-15 75-230 PYB 1200 145 20-50 110-200 PYZ 100 8-26 50-150 PYD 50 3-15 18-105 PYB 900 115 15-50 50-90 PYZ 60 5-20 20-65 PYD 40 3-13 15-50 PYB 600 65 12-25 12-25 PYD 35 3-15 5-23
