- Overview
-
PCL sand making machine plays an important role in fine crushing. It is applicable to crushing and shaping for soft or medium-hard or extremely-hard materials and is widely used in all kinds of minerals, cement, refractory material, carborundum grain, glass raw material, construction sand, stone stock and all kinds of metallurgy slag.
- Processed Materials
-
Iron ore, copper ore, gold and silver ore, zinc ore, manganese ore, limestone, granite, basalt, river stone, coal gangue, quartz.
- Applications
-
Mechanism sand, bituminous concrete, metal mine, aggregates shaping

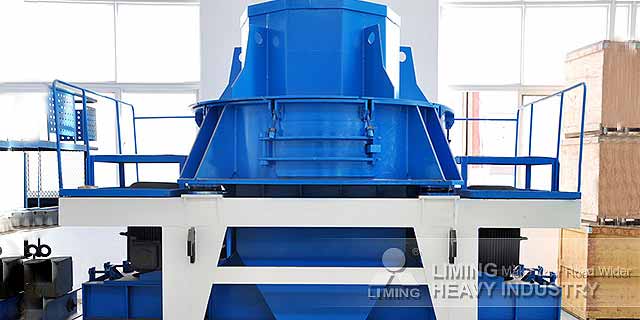

- Picture Shows
-
- Working Principle
-
Raw materials directly enter the high speed impeller from the top of the machine. With function of large centrifugal force, these materials impacts with the other materials falling around the rotor. Then they will impact with other materials inside the crushing chamber between impeller and frame, and finally being crushed.
- Specifications
-
Model Max. Feeding Size (mm) Capacity (t/h) PCL-1350 50 120-200 PCL-1250 45 80-150 PCL-1050 45 70-120 PCL-900 40 50-80 PCL-750 35 30-50 PCL-600 30 10-30
